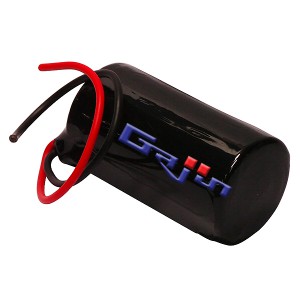

■ Ni-Cd Battery (니켈카드뮴 충전배터리)
ㅡ 입출력 전선을 연결하고 수축필름으로 포장작업을 하였습니다.
ㅡ 극성주의 : 전선의 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ Nominal voltage : 1.2V
◇ Typical Capacity : 5500mAh (5.5Ah)
◇ IEC designation : KRHR 33/62
◇ Dimensions(Diameter x Height) : (D) 33(34) x 60mm (about)
◇ Weight : 151g (about)
◇ Fast Charge Current : up to 5000mA (Time ~1 h), (Temp. 10 to 40 ℃)
◇ Standard Charge Current : 500mA (Time 16 h), (Temp. 5 to 50 ℃)
◇ Trickle Charge Current : 150mA
◇ Maximum Continuous Discharge Current : 50A (at +20 ℃)
◇ Maximum Peak Discharge Current : 150A (at +20 ℃)
▶ ARTS Energy’s VRE standard Ni-Cd series are perfectly suited to cycling applications.
It is designed for a wide range of applications requiring a high level of robustness.
< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >
