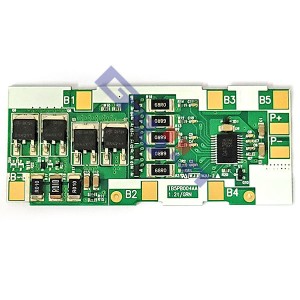

■ Protection Circuit Module (리튬이온, 폴리머 5셀 직렬용 보호회로)

 ㅡ 셀 밸런스 기능이 있는 보호회로이며 배터리에 연결시 작업비 포함금액입니다.

◇ Over charge detection Voltage :  21.25 V

◇ Over charge release Voltage : 20.5 V

◇ Cell-balance detection Voltage : 21 V

◇ Cell-balance current : 38 ~ 50 mA

◇ Over discharge detection Voltage : 12.5 V

◇ Over discharge release Voltage : 15 V

◇ Discharge overcurrent detection Current : 30 A

◇ Charge overcurrent detection current : 30 A

◇ Short Protection : 100A +/- 30A

◇ Operating temperature range : -10 ~ 40 ℃

◇ Size : 4 x 33 x 78 mm
