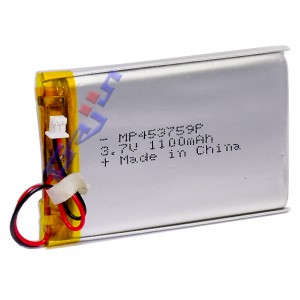

■ Rechargeable Lithium Polymer Battery (리튬폴리머 충전배터리)
ㅡ 커넥터 Molex 51021-02M-RB 극성주의
전선의 (좌, 우 위치 확인) 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ Nominal Voltage : 3.7 V (Charge Voltage 4.2 V)
◇ Nominal Capacity : 1100 mAh (1.1 Ah)
◇ Minimum Capacity : 1100 mAh
◇ Standard Charge Current : 0.2 C (220 mA) / charge time 6.5 h
◇ Rapid Charge : 1 C (1100 mA) / charge time 2.5 h
◇ Standard Discharge Current : 0.2 C (220 mA) constant
◇ Maximum Charge Current : 1.0 C
◇ Peak Discharge Current : 2 C (2,200 mA) / Continuous discharge current 1 C
◇ Operation Temperature range : (Charge) 0 ~45 ℃ / (Discharge) -20 ~60 ℃
◇ Storage temperature range : -20 ~ 25 ℃
◇ Size : 4.7 x37.5 x61.5 mm
◇ Weight : 20 g (about)
|
