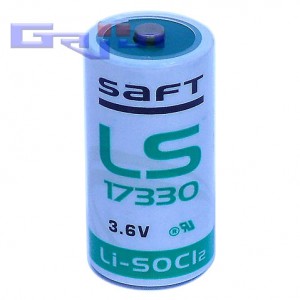

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)

  - 2/3A Size bobbin cell

◇ Nominal Capacity : 2.1Ah (2100mAh)

◇ Open circuit voltage : 3.67V (at + 20℃)

◇ Nominal Voltage : 3.6 V (at 0.2 mA + 20 ℃)

◇ Nominal energy : 7.56Wh

◇ Pulse Capability :  Typically up to 120mA

◇ Maximum Recommended Continuous Current : 25mA

◇ Storage Temperature : +30 ℃ (max)

◇ Operating temperature range : -60 ~ 85 ℃

◇ Size : (2/3A)  (D)16.5 x (H)33.4mm

◇ Typical Weight : 14.4g

          < ↑ 마이너스(-) 극 >
