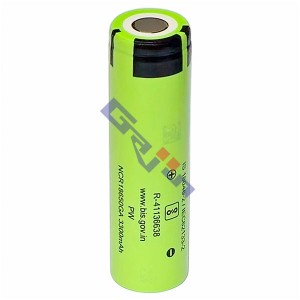

■ Lithium ion Rechargeable Battery (리튬이온 충전배터리)

 ㅡ 리튬이온은 보호회로(PCM)를 연결하여 사용하셔야 합니다.


◇ Nominal Voltage : 3.6V (0.67A discharge)

◇ Charging Voltage : 4.2V

◇ Discharging End Voltage : 2.5V

◇ Typical Capacity : 3450mAh (3.45Ah)

◇ Charging Current : (Std.) 1675mA

◇ Charging Time : 4.0hrs

◇ Continuous Discharge Current : (Max.) 10A (0~40℃)

◇ Ambient Temperature : (Charge) 10 ~ 45℃,

                       (Discharge) -20 ~ 60℃

                 (Storage) -20 ~ 20℃

◇ Dimensions (Max.) : (4/3FA) 18.3 x 65.1mm

◇ Weight (Max.) : 49.5g
