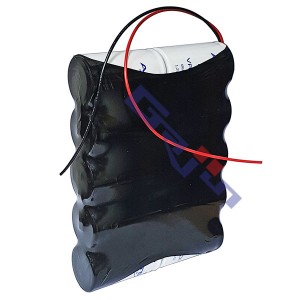

■ 사프트 니켈카드뮴 충전배터리 VRE DL5500 (Size D 1.2V 5500mAh) 10개를
5개 직렬, 2개 병렬로 조립하여 전압과 용량을 높이고 입출력 전선을 연결하고
수축필름(색깔은 변경될 수 있음)으로 포장을 하였습니다.
◇ Nominal voltage : 6V
◇ Typical Capacity : 11Ah (11,000mAh)
◇ Size : (D x10EA) 161 x 117 x 32.2mm (about)
◇ Weight : 1.5kg (about)
◇ Fast Charge Current : up to 10000mA (Time ~1 h), (Temp. 10 to 40 ℃)
◇ Standard Charge Current : 1000mA (Time 16 h), (Temp. 5 to 50 ℃)
◇ Trickle Charge Current : 300mA
◇ Maximum Continuous Discharge Current : 100A (at +20 ℃)
◇ Maximum Peak Discharge Current : 300A (at +20 ℃)
○ 다른 형태의 작업을 원하시면 전화해 주세요.
ㅁ (조립) 집합배터리는 주문제작으로 반품 및 환불이 안 되오니 주의해 주세요.
< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >



▶ ARTS Energy’s VRE standard Ni-Cd series are perfectly suited to cycling applications.
It is designed for a wide range of applications requiring a high level of robustness.
