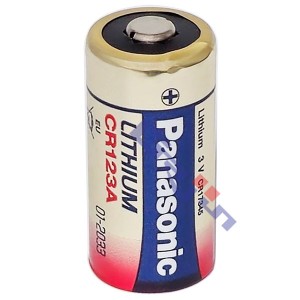

■ Primary Lithium Manganese Dioxide Battery (리튬1차배터리)
◇ Nominal Voltage : 3V
◇ Nominal Capacity : 1550mAh
(Nominal capacity is based on the standard discharge current
and cut-off voltage 2.0 V at 20 ℃)
◇ Standard Discharge Current : 20mA
◇ Maximum Continuous Discharge Current : 1000mA ( at 20℃ )
◇ Weight : 17g
◇ Size : (2/3A) 17 x 34.2 mm
◇ Temperature : (Operation) -40 ~ 70 ℃, (Storage) -20 ~ 45 ℃
< 마이너스(-) 극 ↑ >
* The data in this document is for descriptive purposes only and is not intended to make or
imply any
guarantee or warranty.
