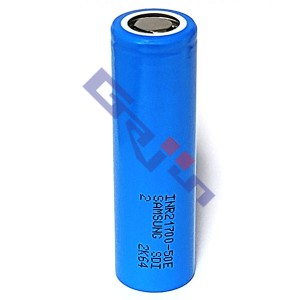

■ Lithium-ion Rechargeable Cell (리튬이온 충전배터리)

 ㅡ 리튬이온은 보호회로를 연결하여 사용하셔야 합니다.

◇ Standard Discharge Capacity : 4,900mAh (Min)

◇ Charging Voltage : 4.2V

◇ Nominal Voltage : 3.6V

◇ Standard Charge : 2450mA (3hours)

◇ Max. Charge Current : 4900mA

◇ Max. Discharge Current : 9800mA (for continuous discharge)

                   14700mA(not for continuous discharge)

◇ Discharge Cut-off Voltage : 2.5V

◇ Cell Weight : 69g

◇ Cell Size : (5/3C) (D)20.25 x (H)70.80mm

◇ Operating Temperature : (Charge) 0 ~ 45℃,  (Discharge) -20 ~ 60℃

              (Storage) -20 ~ 23℃
