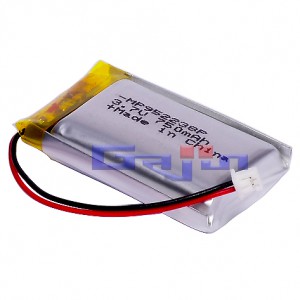

■ Rechargeable Lithium Polymer Battery (리튬폴리머 충전지)
ㅡ 커넥터 Molex 51021-02M-RB 극성주의
전선의 (좌, 우 위치 확인) 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ 용 량 (Nominal Capacity) : 750mAh(0.75Ah)
◇ 크 기 (Size) : 9.5 x22.5 x40.5mm (about)
◇ 중 량 (Weight) : 12g (about)
◇ Standard charge Current : 0.2 C (150 mA) charge time 6.5 h
◇ Maximum Charge Current : 1 C (750 mA) charge time 2.5 h
◇ Standard discharging method : 0.2C constant current discharge to 3.0V
◇ Maximum discharge current : 1 C (750 mA)
◇ Peak discharge current : 2 C (1500 mA)
◇ Operation Temperature : Charge 0 ~ 45℃ / Discharge -20 ~ 55℃
◇ Storage temperature for a long time : -20 ~ 25℃
