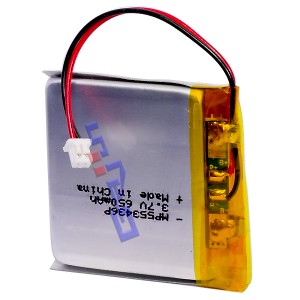

■ Rechargeable Lithium Polymer Battery (리튬폴리머 충전지)
ㅡ 커넥터 Molex 51021-02M-RB 극성주의
전선의 (좌, 우 위치 확인) 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ 전 압 (Nominal Voltage) : 3.7V (Charge Voltage 4.2V)
◇ 용 량 (Nominal Capacity) : 650 mAh (0.65 Ah)
◇ 크 기 (Size) : 5.7 x34.5 x38mm
◇ 중 량 (Weight) : 14 g
◇ Standard Charge : 0.2 C (124 mA), 1 C (620 mA)
◇ Maximum Charge Current : 1.0 C (620mA)
◇ Charge : 1C (1250mA) Charge time 2.5h
◇ Peak Discharge Current : 2 C (1240 mA)
◇ Operation Temperature Range : Charge 0 ~45℃, Discharge -20 ~60℃
◇ Storage temperature for a long time : -20 ~25℃
◇ Cycle Life : 500 Cycles (70% of initial capacity)
