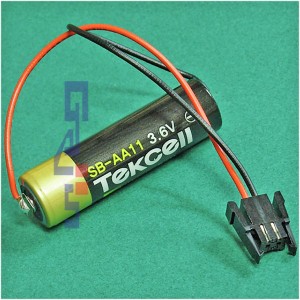

■ Li/SOCL2 Battery-Bobbin Type (리튬1차배터리 보빈타입)
ㅡ 수축필름으로 포장작업을 하여 발송해 드립니다.
ㅡ 커넥터 HNC2-2.5S-2M-RB 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 흰색은 마이너스(-)
◇ Nominal Voltage : 3.6V
◇ Nominal Capacity : 2.5Ah (2500mAh)
◇ Max. Continuous Discharge Current : 60mA
◇ Max. Pulse Discharge Current : 100mA
◇ Weight : 17g
◇ Size : (AA) 14.2(16) x 50.5mm
◇ Operating Temperature : -55 ~ 85℃
< ↓ 아래는 단셀에 대한 정보입니다 >
◎ Warning
Fire, explosion and severe burn hazard.
Do not recharge, crush, disassemble, heat above 212℉(100℃),
incinerate, short circuit of expose contents to water.
Keep battery out of reach of children and in original package until ready to use.
Dispose of used batteries promptly.
※ Any information given here is for reference only.
Information is also dependent on actual conditions of use and does not guarantee future performance,
and subject to change.
