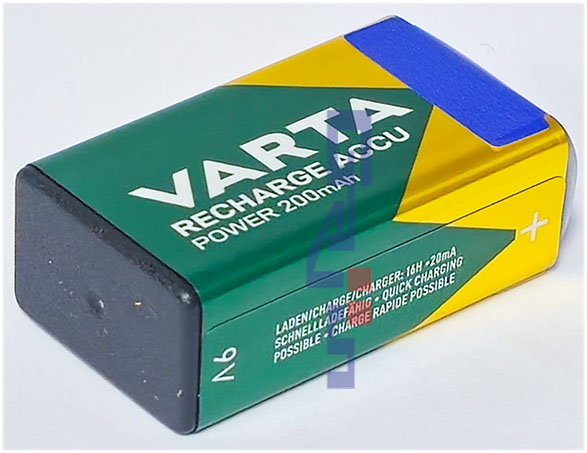

■ Ni-MH Rechargeable Battery (니켈수소 충전배터리)

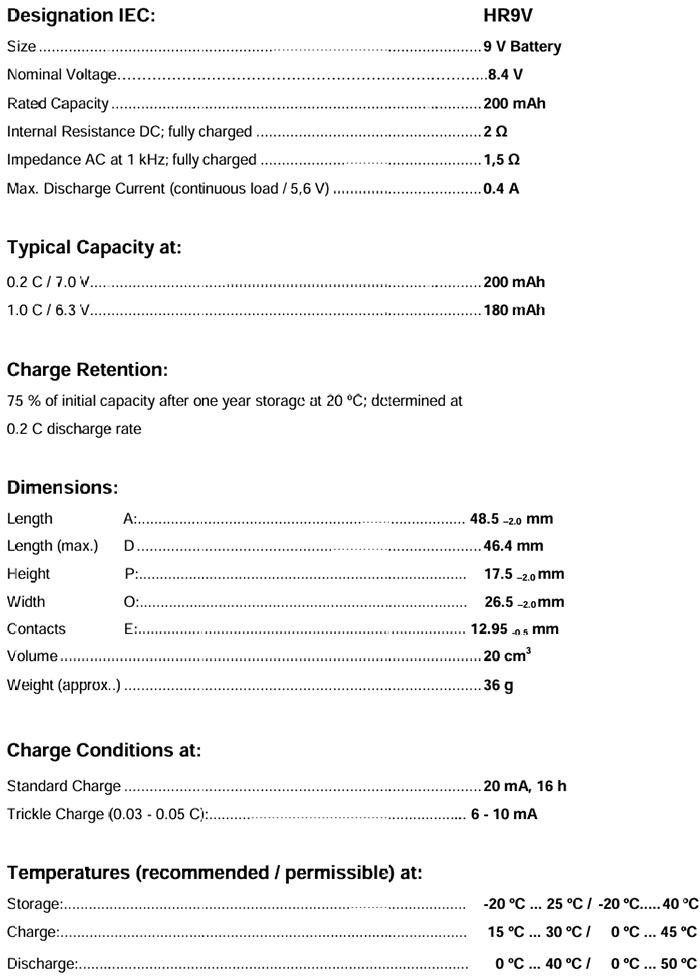

◇ Nominal Voltage : 8.4V
◇ Rated Capacity : 200mAh
◇ Internal Resistance DC; fully charged : 2Ω
◇ Impedance AC at 1 kHz; fully charged : 1,5Ω
◇ Max. Discharge Current (continuous load / 5,6V) : 0.4A
◇ Temperature : Storage -20 ~ 25 ℃
Charge 15 ~ 30 ℃ Discharge 0 ~ 40 ℃

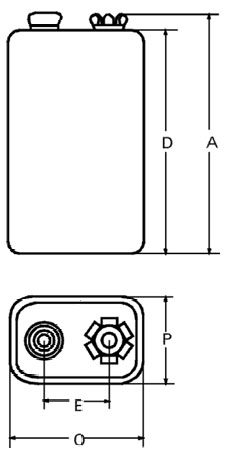

A : 48.5mm D : 46.4mm P : 17.5mm O : 26.5mm E : 12.95mm
Information and contents in this data sheet are for reference purpose only.
They do not constitute any warranty or representation and are subject to change without notice.
For most current information and further details, please contact your VARTA representative.
