ㅡ (파워)중방전용

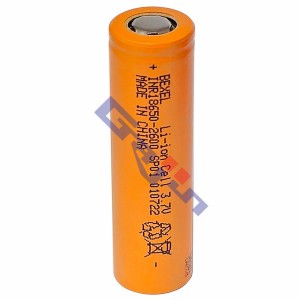

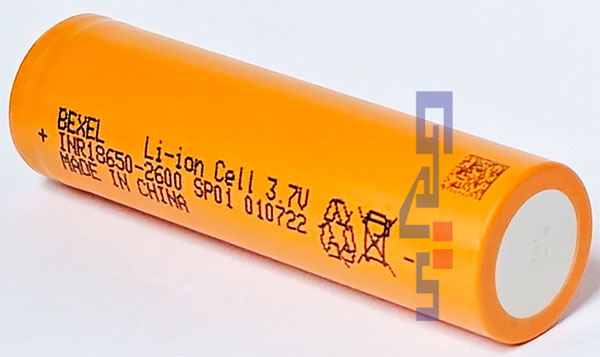

■ Lithium Ion Rechargeable cell (리튬이온 충전배터리)

 ㅡ 리튬이온은 보호회로를 연결하여 사용하셔야 합니다.

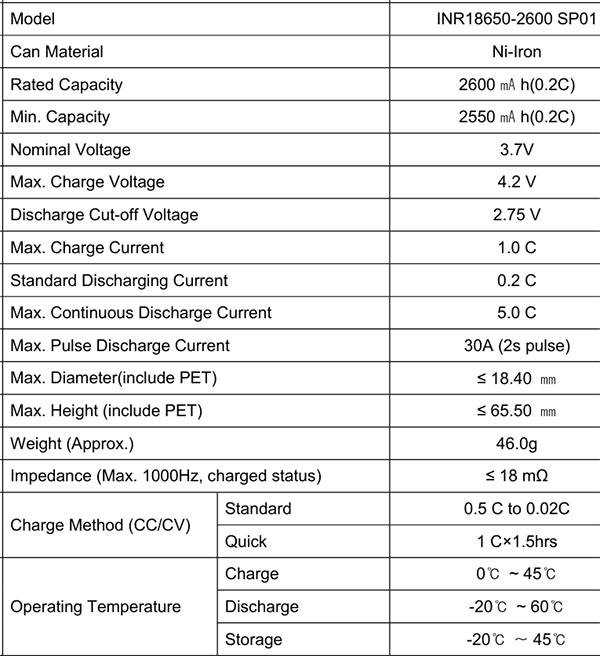

◇ Rated Capacity : 2600mAh (2.6Ah)

◇ Nominal Voltage : 3.7V

◇ Max. Charge Voltage : 4.2V

◇ Discharge Cut-off Voltage : 2.75V

◇ Max. Charge Current : 1.0C (2.6Ah)

◇ Standard Discharging Current : 0.2C

◇ Max. Continuous Discharge Current : 5.0C (13Ah)

◇ Max. Pulse Discharge Current : 30A (2S pulse)

◇ Size :  (4/3FA) 18.4 x 65.5mm

◇ Weight : 46g

◇ Operating Temperature : (Charge) 0 ~ 45℃

                    (Discharge) -20 ~ 60℃

                (Storage) -20 ~ 45℃
