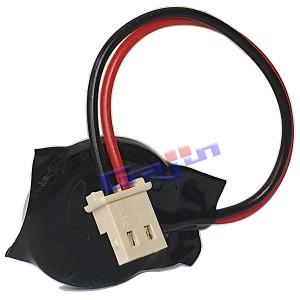

■ Lithium Manganese Dioxide Rechargeable Battery (리튬 이산화망간 충전배터리)
ㅡ 커넥터(Molex 5264-02RB) 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ Nominal Voltage : 3V
◇ Nominal Capacity : 65mAh
◇ Nominal Discharge Current : 200㎂
▶ Charge/Discharge Cycle Lifetime
◇ Depth of Discharge (= 10 %) : 1,000 (6.5 mAh discharge) (total capacity 6,500 mAh)
◇ Depth of Discharge (= 20 %) : 300 (13 mAh discharge) (total capacity 3,900 mAh)
◇ Operating Temperature Ranges : -20 ~ 60℃
◇ Weight : 5g (about)
◇ Dimensions : 21 x 25 x 4mm (about)
< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >
