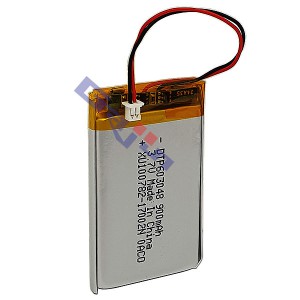

■ Polymer Lithium Ion Battery

ㅡ 커넥터 극성주의

   전선의 (좌,우 위치확인) 빨간색은 +/플러스, 검은색은 -/마이너스

◇ Max Capacity / Typical Capacity : 900 mAh (0.5 C)

◇ MIN Capacity : 850 mAh (1 C)

◇ Nominal Voltage : 3.7 V

◇ Charge Limited Voltage : 4.2 V

◇ Discharge Cut-off Voltage : 2.55 V (End-of-charge Current 10 mA)

◇ Standard Charge Current : (Constand) 850 mA / 1C

◇ Maximum Continuous Charge Current : 850 mA (1 C)

◇ Standard Discharge Current : (Constant) 180 mA (0.2 C)

◇ Quickly Discharge Current : 850 mA (1 C)

◇ Maximum Continuous Discharge Current : 850 mA (1 C)

◇ Operating Temperature Range

 - Charge : 0 ~ 45 ℃

 - Discharge : -20 ~ 60 ℃

 - Storage : -20 ~ 60 ℃

◇ Size : T6.2 x W30.5 x L50.5 mm

◇ Weight : 35 g

◇ Wire : UL3302 28AWG Molex51021-02
