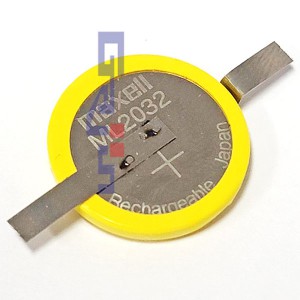

■ Lithium Manganese Dioxide Rechargeable Battery (리튬 이산화망간 충전배터리)

 ㅡ Pin Size : (T)0.1 x (W)3 x (L)5 mm (about)

◇ Nominal Voltage : 3 V

◇ Nominal Capacity : 65 mAh

◇ Nominal Discharge Current : 200 ㎂


□ Charge/Discharge Cycle Lifetime

◇ Depth of Discharge (= 10 %) : 1,000 (6.5 mAh discharge) (total capacity 6,500 mAh)

◇ Depth of Discharge (= 20 %) : 300 (13 mAh discharge) (total capacity 3,900 mAh)

◇ Operating Temperature Ranges : -20 ~ 60 ℃

◇ Weight : 3.2 g (about)

◇ Dimensions(Diameter x Height) : 20.5 x3 .5 mm (about)
