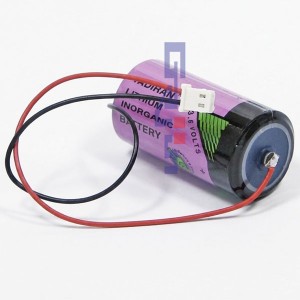

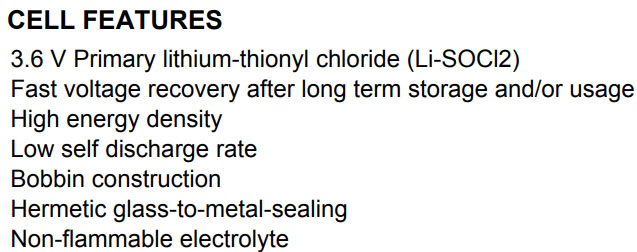

■ Primary Lithium-thionyl chloride (Li-SOCl2) 염화리튬티오닐 1차배터리)

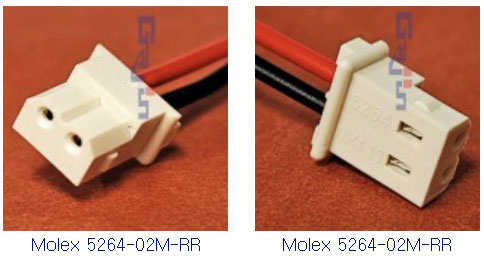

ㅡ 커넥터 Molex 5264-02M-RR 극성주의

 전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

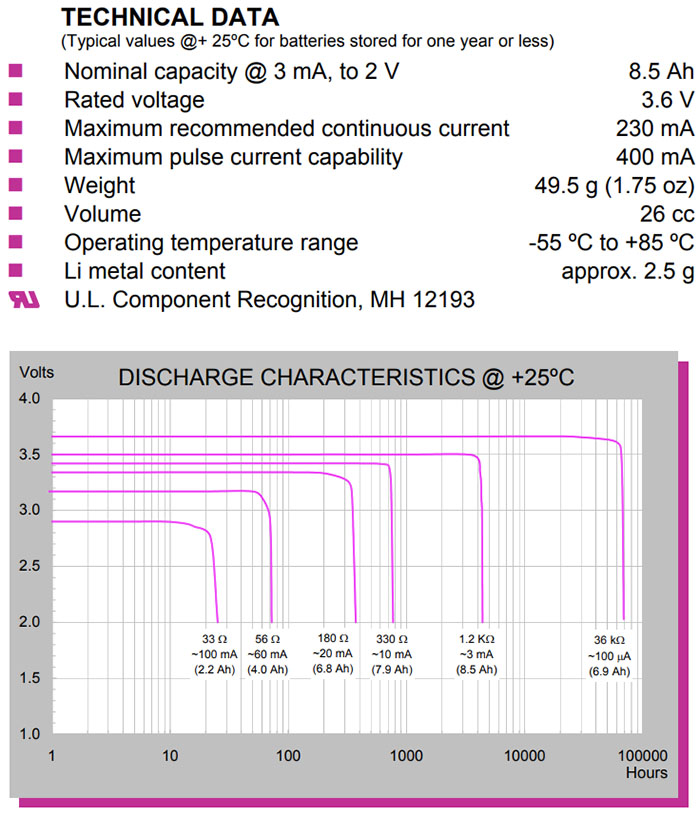

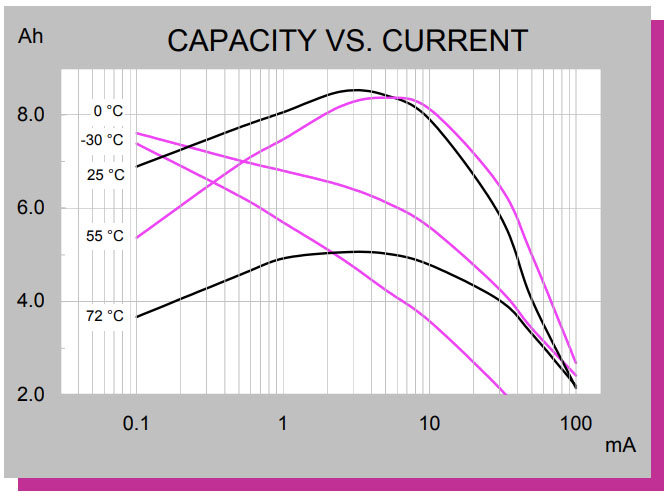

◇ Nominal Capacity : 8.5Ah (8,500mAh)

◇ Rated Voltage : 3.6V

◇ Maximum recommended continuous current : 230mA

◇ Maximum Pulse current capability : 400mA

◇ Weight : 50g (about)

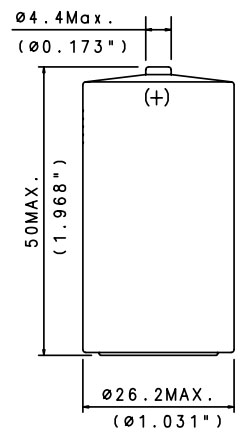

◇ Size : (C) 26.5(28) x 51.5mm (about)

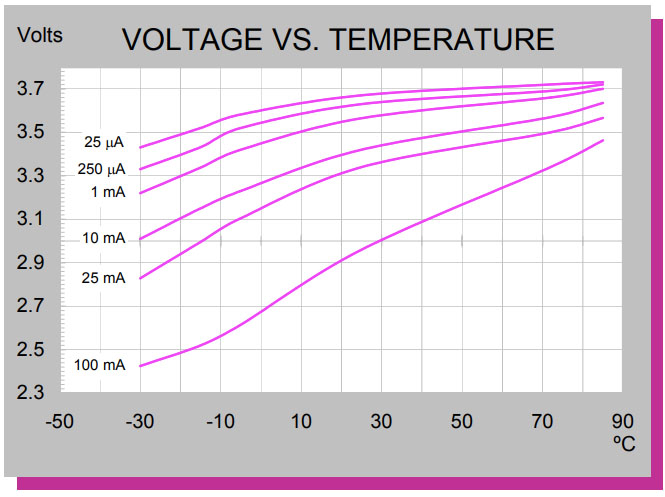

◇ Operating temperature : -55 ~ 85 ℃
